8700PRO Leather Belt Hot Embossing Machine with Heated Roller

Click here for DEMO video

TBD

Special order this machine by calling 13815324876. Customer service will be happy to help and provide you with an estimated lead time.

Call us at: 13815324876 for more information, or to order

Description +

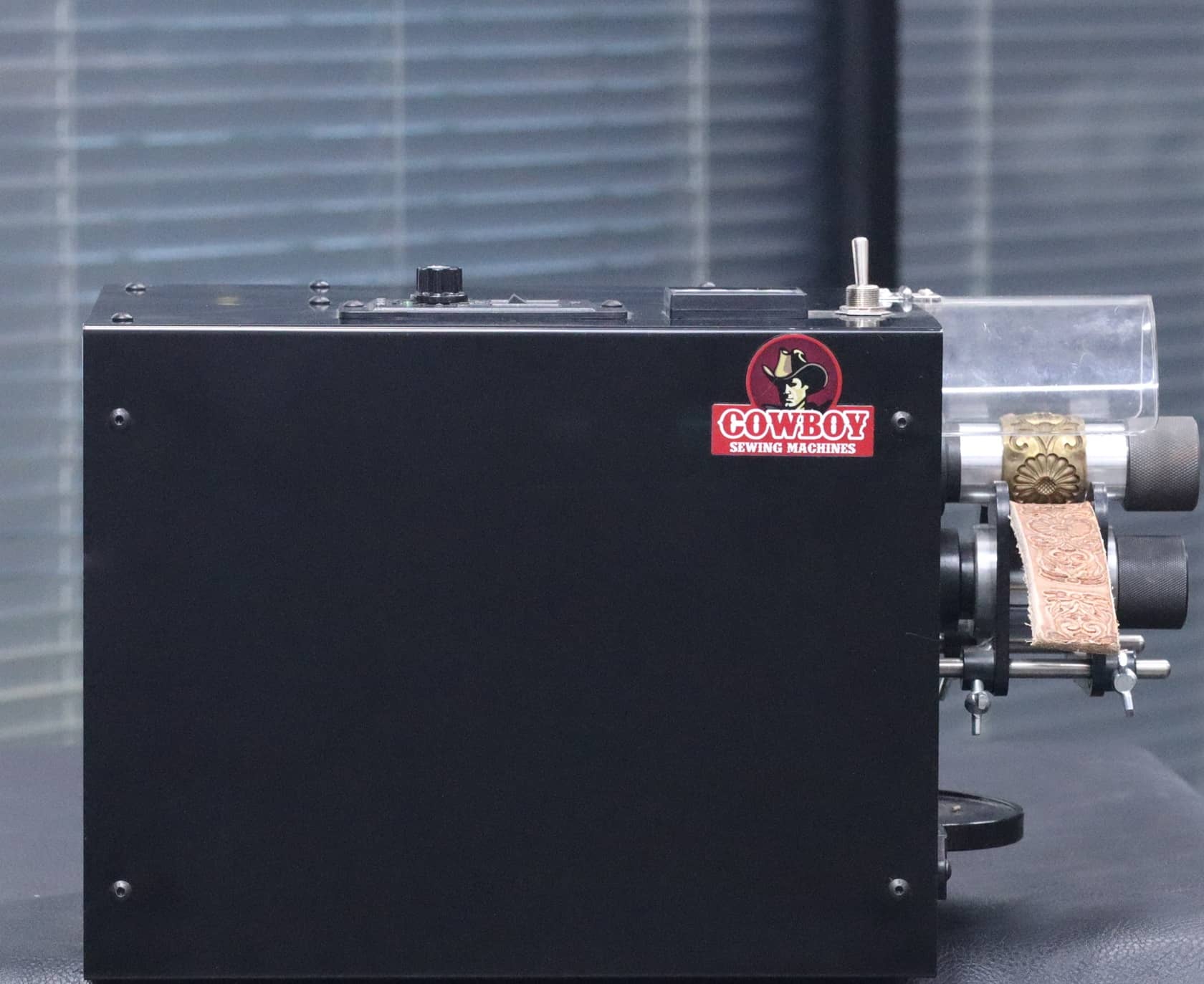

The Cowboy 8700PRO is a benchtop leather belt and strap hot-embossing machine featuring a heated brass roller system. Upgraded from the base, manual hand-cranked 8700 model, the 8700PRO is specifically engineered for professional leather craftsmen and strap manufacturers who require premium, deeply stamped decorative patterns on vegetable-tanned leather strips.

1. Superior Impression Depth and Premium "Patina" Finish

Deeper, Crisper Imprints: The integrated heating element quickly warms the high-quality brass embossing rollers to an optimal 150°C within just 2 minutes. Combining heat with physical pressure allows the die to penetrate much deeper into the leather fibers, producing a razor-sharp, permanent imprint that will not fade.

Glossy Hand-Carved Burnish: The heat lightly burnishes the leather exactly where the die makes contact, leaving a distinct sheen often referred to as "patina". This beautiful, darkened glossy effect closely mimics the appearance of time-consuming, premium hand-tooling and manual leather carving.

2. Variable-Speed Power Feed & Depth Control

Consistent Motorized Throughput: Unlike manual hand-cranked models that can cause uneven stamping depth if the operator changes speeds mid-strap, the 8700PRO features a motor-driven, variable-speed feed system. It regulates how quickly the leather belt passes through the roller, ensuring flawless consistency across the entire length of the strap.

Precision Depth Calibration: The machine allows the user to micro-adjust both the clearance and the downward pressure of the heated roller. This gives you complete control over the pattern's depth and clarity, allowing you to easily recalibrate the machine when switching between thin watch straps and thick, heavy-duty saddle leather or gun belts.

3. High Multi-Functional Adaptability

Three Operations in One Bench Tool: Beyond pressing decorative textures, the 8700PRO can be fitted with specialized roller dies to seamlessly emboss patterns, crease borders, or cut/trim strap edges.

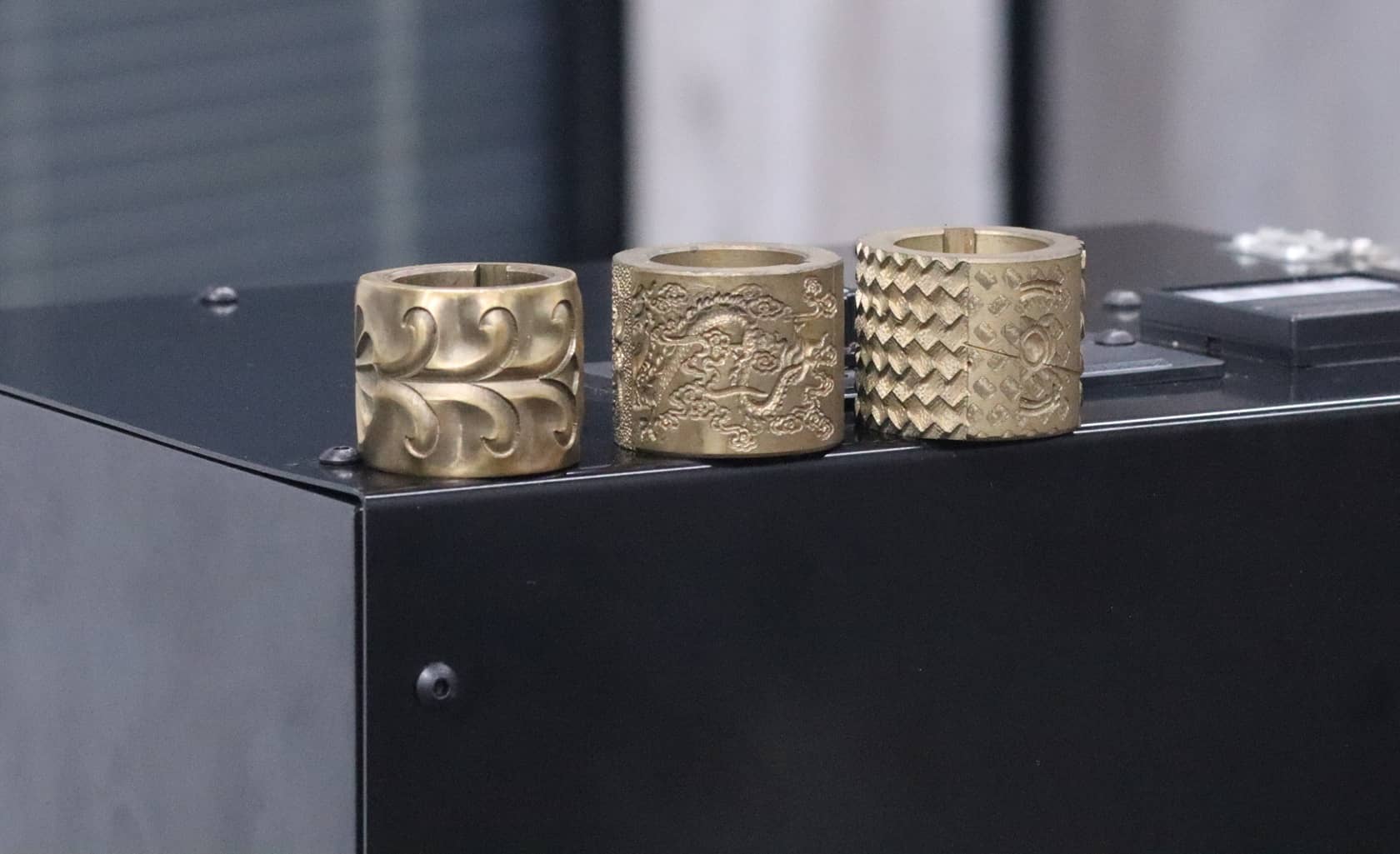

Universal Industry Die Compatibility: The spindle is built to accommodate standard, widely available brass embossing rollers used across the leather industry (with standard industry dimensions like a 38mm outer diameter and 25.5mm inner diameter). You can easily find or order hundreds of stock designs (like basketweave, floral western patterns, Celtic braids, or the 12 Zodiac signs) or load custom-branded logo rollers.

Custom roller for DIY belts: Also we can make for custom leather embossing rolls by any quantity according to your design click here for roller's patterns / designs.

4. Elite Value for Commercial Production

Half the Industrial Market Price: The 8700PRO provides the exact same heavy-duty, motorized hot-stamping capabilities as industrial-grade, floor-standing leather embossing machinery, but at roughly half the capital investment cost.

Compact, Shop-Friendly Footprint: Weighing around 19 kg, this highly rigid, compact benchtop unit fits easily on any standard workshop table without occupying valuable factory floor space.

Specifications +

Size of embossing rolls:Outer Dia.:38mm, inner Dia: 25.5mm, Length: 30mm, Keyway:5(depth)x3(width)mm
Material of embossing rolls: High quality brass
Max.roller temperature:140C
Leather type:Vegetable Tanned Leather and Veg Tan Hides (NOT for soft upholstery leather)
Packing size:420x280x280 mm, G.W: 22 KGS

Product Information +

The 8700PRO hot leather embosser penetrates deeper into the hide to create a crisper, more defined imprint. The heat produces a beautiful, glossy burnished effect—often referred to as a "patina"—closely mimicking the premium look of traditional hand-tooling and leather carving.Compatible with standard, widely available industry dies, this versatile bench tool can emboss almost any belt or strap. We also manufacture custom leather embossing rollers in any quantity to match your specific designs. For maximum control, this hot embossing machine features a variable-speed feeding system, allowing the operator to easily regulate how quickly straps pass through the unit for consistent results.
