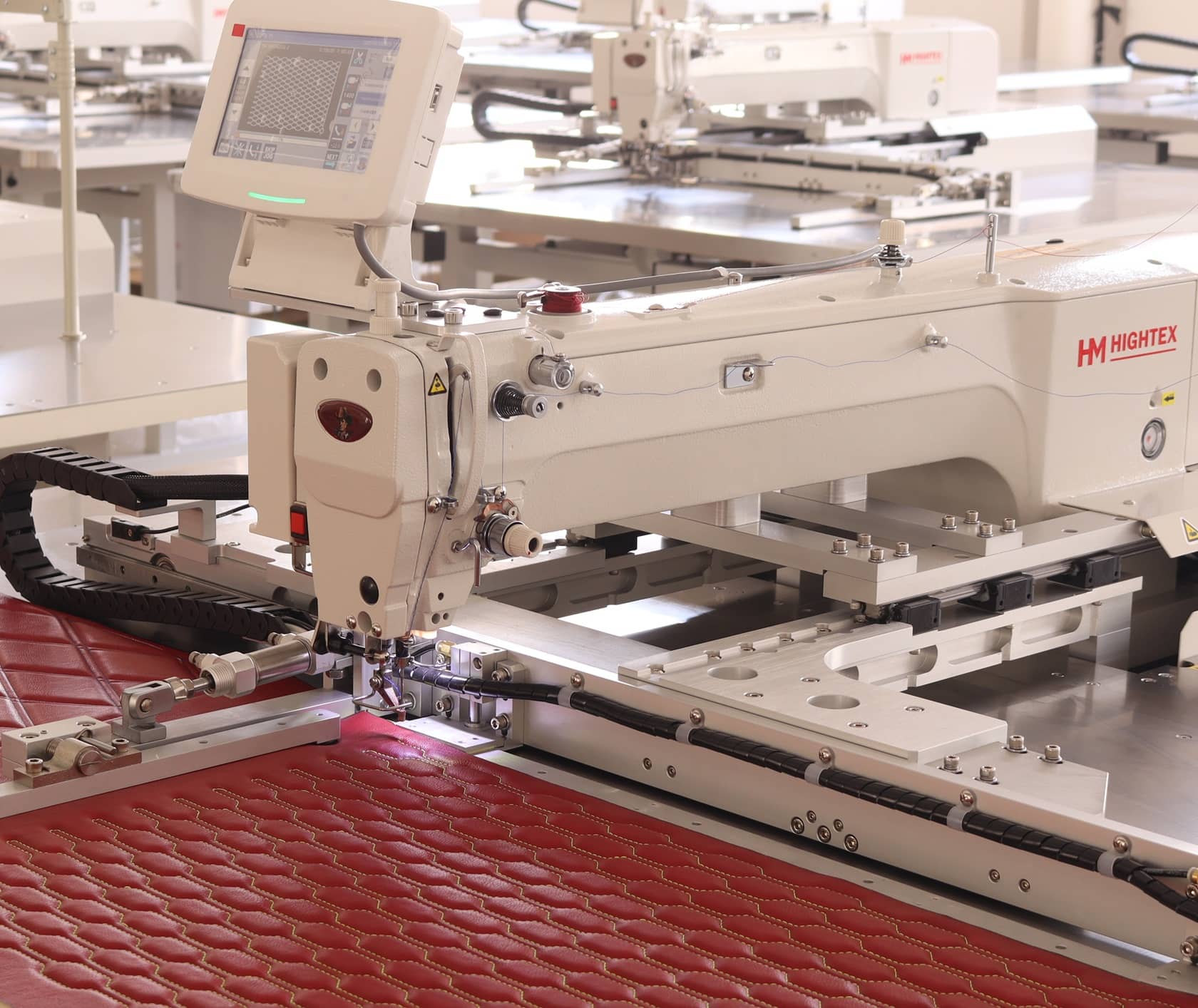

BAS-342GXL wide area automatic pattern sewing machine

Large Area Programmable CNC Pattern Upholstery Sewing Machine thumbnail

BAS-342GXL wide area automatic pattern sewing machine thumbnail

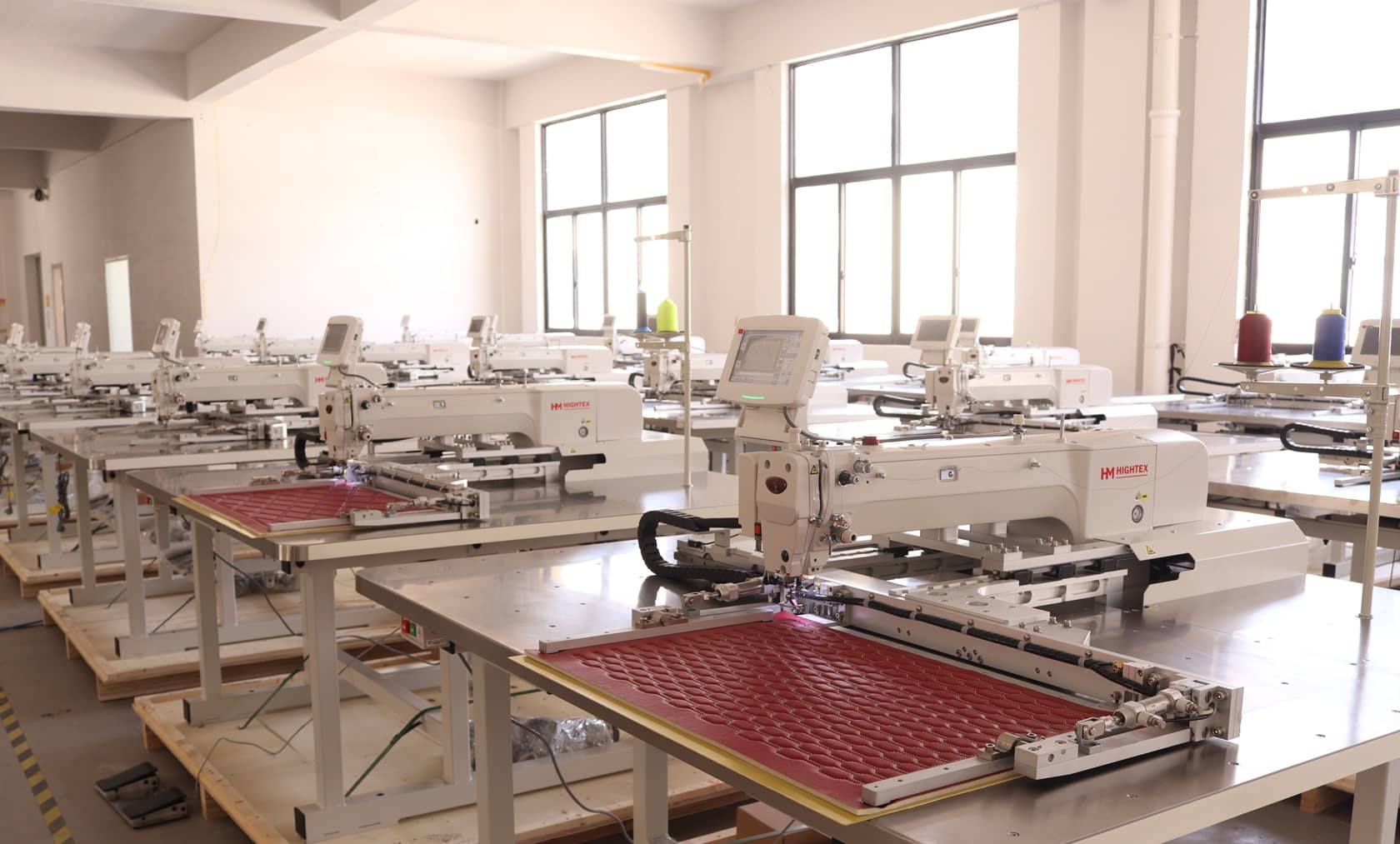

Programmable car seat sewing machine thumbnail

Large field CNC Pattern Sewing Machine thumbnail

BAS-342GXL Large area programmable CNC pattern sewing machine with shuttle hook and cylinder bed for high quality footwear, leather goods and upholstery

Video on YouTube

Call us at: +86 13815324876 for more information, or to order

Description +

High-quality, durable machinery is essential to maximizing production output and profit margins. When purchasing sewing equipment, prioritizing quality over price is a critical investment. Machine failure doesn’t just mean high repair costs—it results in costly downtime, lost orders, and damaged client relationships. At HighTex, reliability is non-negotiable. Unlike alternative suppliers, our commitment to excellence begins long before the machine leaves our facility.

For automatic equipment, we dedicate several weeks to assembling each machine, ensuring every detail is flawless. Following assembly, we spend one to two weeks pre-programming and rigorously testing the equipment using your specific thread and fabric samples. This eliminate setup hassles, ensuring your machine is ready for immediate operation upon arrival.

Because we refuse to cut corners on quality, our automated sewing equipment takes time to prepare. We appreciate your patience as we build the perfect machine for your business.

1. Single-Operation Coverage: It features a spacious 600 mm x 400 mm sewing area. This allows manufacturers to sew large leather panels, full-sized footwear, and entire automotive interior pieces (like door panels, dashboards, and consoles) in a single operation without re-clamping.
2. High-Rigidity Feeding System: It utilizes a precise X-Y axis tracking clamp system that achieves pinpoint accuracy and clean, smooth stitches with a minimum resolution of 0.05 mm.
3. Flawless Geometry: Trendy luxury finishes—like diamond quilting, complex parallel grids, and intricate wave patterns—are executed with total perfection. The CNC-driven needle head moves precisely across the X and Y axes, entirely eliminating human errors like uneven stitch lengths, misaligned intersections, or crooked lines.

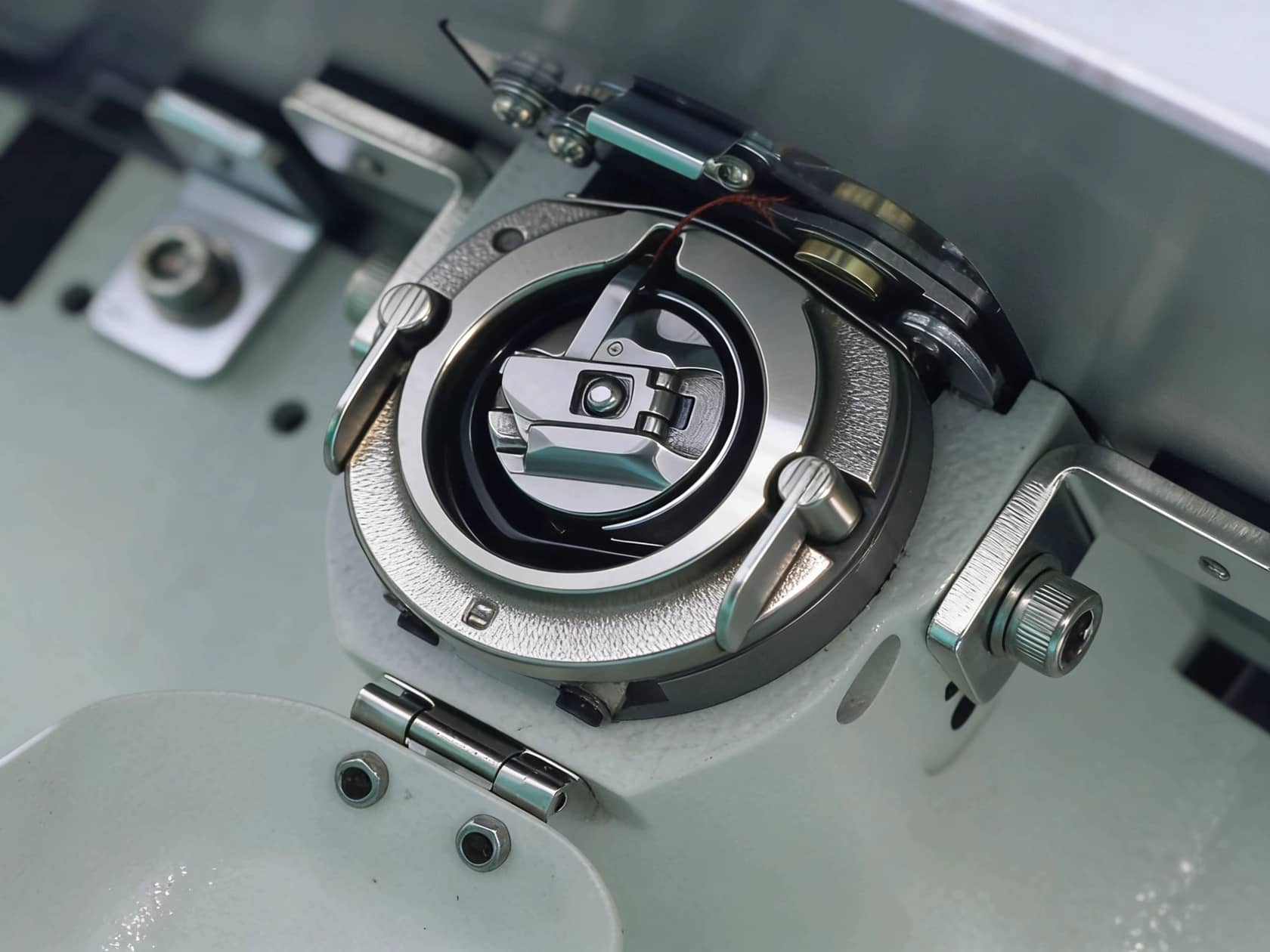

4. Double Bobbin Capacity: Built with a large shuttle hook, the machine accommodates a bobbin with twice the standard thread capacity. This drastically reduces how often operators need to pause production to change bobbin threads, which is especially valuable when working with extra-thick industrial threads.
5. Automatic Presser Foot Controller: When moving across varying layers of material, the height of the stepping presser foot automatically adapts to thickness changes without requiring tools. This mechanism prevents excessive or insufficient pressure, delivering uniform thread tightness and consistent stitch quality.
6. Ultra-Short Automatic Thread Trimming: A newly integrated automatic thread trimmer cuts threads extremely short at the end of a cycle. This completely eliminates the need for manual cleanup trimming, accelerating overall production cycles.
7. Lower Labor Barriers: Because the entire stitching pattern is pre-programmed, the production process requires fewer highly skilled workers. Operators simply drop leather or vinyl into rigid, custom-molded clamping frames.
8. Premium, Wear-Resistant Components: Equipped with hardened steel gears, premium guide rails, and a Japanese-made shuttle hook to drastically lower maintenance costs and eliminate costly production downtime.
9. Ready to Operate Out of the Box: Each machine arrives completely installed, pre-programmed, fully tested, and serviced, allowing you to begin immediate production without setup delays.

Specifications +

Max. Speed: 2200 rpm
Max. sewing Area: 600x400mm
Max. Stitch Length: 12.7MM
Needle: DPX17#18
Max.Thread Sizes:Metric #15 (=V207, T-210, 630dx3)
Maximum Foot Lift:20mm
Max Sewn Thickness: 15mm
Pattern Input:Touch screen
Max. QTY of Patterns:2000 patterns
Air pressure: 0.6 MPa
Motor: 1000W/200-240 Volt
Packing size:1620x1550x1420MM, G.W: 470 KGS

Product Information +

This automated upholstery sewing machine has been a consistent BEST seller for customers sewing car seat covers. Up to 600x400 large sewing area allow for decorative stitching wide footwear, leather goods and upholstery panel by single operation. This high precision CNC programmable sewing machine provides the highest quality sewing exactly the way it is programmed even at high speed sewing with maximum performance according to each sewing area. The Barrel type shuttle hook and High-rigid feeding commands beautiful stitching even at high-speed sewing. Excessive or insufficient pressing by the stepping foot can be prevented, enabling a finish with uniform thread tightening.
This computerized upholstery sewing machine is powered by precise servo motors, that produce the best stitch quality in the industry. It's one of the highest rated machines in this class with a large worldwide following.
